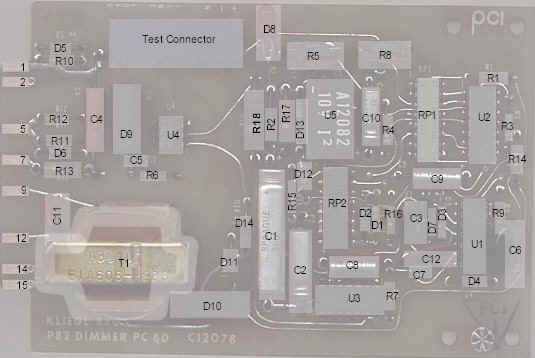

| Designation |
Description |
|
|
|
|
| R1 |
1k ohms, +/-5% 1/8w |
|
|
|
|
| R2 |
2200 ohms, +/-5% 1/8w |
|
|
|
|
| R3 |
CGW RN55D 1471F |
1/8W 1% 1.47K OHM |
|
|
Stocked |
| R4 |
1.5K ohms, +/-5% 1/8W |
|
|
|
|
| R5 |
X201R252B |
POT TRIMMER 2.5K OHM VERTICAL |
|
201XR252B-ND |
Stocked |
| R6 |
10K ohms, +/-5% 1/8w |
|
|
|
|
| R7 |
300K ohms, +/-5% 1/8w |
|
|
|
|
| R8 |
X201R502B |
POT TRIMMER 5K OHM VERTICAL |
|
201XR502B-ND |
Stocked |
| R9 |
100K ohms, +/-5% 1/8w |
|
|
|
|
| R10 |
1k ohms, +/-5% 1/8w |
|
|
|
|
| R11 |
1k ohms, +/-5% 1/8w |
|
|
|
|
| R12 |
47 ohms, +/-5%1/8w |
|
|
|
|
| R13 |
100 ohms, +/-5% 1/4w |
|
|
|
|
| R14 |
39K ohms, +/-5% 1/8w |
|
|
|
|
| R15 |
2700 ohms, +/-5% 1/8w |
|
|
|
|
| R16 |
68K ohms, +/-5% 1/8w |
|
|
|
|
| R17 |
330 ohms, +/-5% 1/2w |
|
|
|
|
| R18 |
650 ohms, +/-5% 1/2w |
|
|
|
|
| RP1 |
761-3-R10K |
RES NET 8RES 10K OHM 16PIN |
|
|
|
| RP2 |
761-3-R27K |
RES NET 8RES 27K OHM 16PIN |
|
761-3-R27K-ND |
Stocked |
| D1 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D2 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D3 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D4 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D5 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D6 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D7 |
|
|
|
|
|
| D8 |
Red LED |
LED Red |
Various |
|
Stocked |
| D9 |
KBP02 |
RECTIFIER BRIDGE 1.5A 200V |
|
2KBP02M-ND |
Stocked |
| D10 |
KBP02 |
RECTIFIER BRIDGE 1.5A 200V |
|
2KBP02M-ND |
Stocked |
| D11 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| D12 |
1N4744 |
DIODE ZENER 15V 1W 5% DO-41 |
Fairchild |
1N4744 |
Stocked |
| D13 |
|
|
|
|
|
| D14 |
1N4005 |
Diode STD REC 600V 1A AXIAL |
Fairchild |
1N4005 |
Stocked |
| C1 |
TE-1308 50vdc |
Capacitors - 105 Degree 75uF 50V +75%, -10% |
Nichicon |
647-UPW1H101MPH |
Stocked |
| C2 |
TE-1204 25vdc |
Capacitors - 105Degree 50V 10uF |
Nichicon |
647-UPW1H100MDH |
Stocked |
| C3 |
100v .1 +/- 10% |
Sub-Mini Polyester Film Capacitor |
Xicon |
140-PF2A104K |
Stocked |
| C4 |
.01 400VDC +/- 10% |
Capacitor |
|
|
|
| C5 |
100v .01 +/- 10% |
Sub-Mini Polyester Film Capacitor |
Xicon |
140-PF2A103K |
Stocked |
| C6 |
100v .22 +/- 10% |
Sub-Mini Polyester Film Capacitor |
Xicon |
140-PM2A224K |
Stocked |
| C7 |
100v .01 +/- 10% |
Sub-Mini Polyester Film Capacitor |
Xicon |
140-PF2A103K |
Stocked |
| C8 |
TE-1201 25vdc |
Capacitors - 105Degree 50V 2.2uF |
Nichicon |
647-UPW1H2R2MDH |
Stocked |
| C9 |
TE-1200 25vdc |
Capacitors - 105Degree 50V 1.0uF |
Nichicon |
647-UPW1H010MDH |
Stocked |
| C10 |
TE-1200 25vdc |
Capacitors - 105Degree 50V 1.0uF |
Nichicon |
647-UPW1H010MDH |
Stocked |
| C11 |
.01P Z5U 1kv |
Capacitor |
|
|
|
| C12 |
Z5U .05M 100v |
Capacitor |
|
|
|
| U1 |
LM324N |
IC OPAMP QUAD 0-70DEG C 14-DIP |
|
LM324N |
Stocked |
| U2 |
LM324N |
IC OPAMP QUAD 0-70DEG C 14-DIP |
|
LM324N |
Stocked |
| U3 |
LM339N |
IC COMPRTR QUAD 0-70DEG C 14-DIP |
|
296-1393-5-ND |
Stocked |
| U4 |
H11C1 |
Opto-coupler SCR-out 6-DIP |
Fairchild |
H11C1-ND |
Stocked |
| U5 |
A12082 |
Control Voltage Interface Module 10VDC |
Kliegl |
|
|
| T1 |
|
Transformer |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
